| Quantity: | |
|---|---|
| Overview | |||
| Quick Details | |||
| Function | Anti-Static, Antibacterial,moistureproof | Usage | Outdoor or Indoor |
| Application | Decorative Material | Surface Treatment | Brushed.Mirror |
| Warranty | ≥8 years | kitchen cabinet | building facade |
| Panel Thickness | 2，3，4，5，6，7,8mm | Output | 20,000sqm/day |
| Coating | PE,PVDF | Aluminum Thickness | 0.06-0.5mm |
| Transportation | 20GP container | Fireproof Grade | B1 or notfireproof |
| Color | Silver,Red,White,Customer's Requirements | Delivery Time | 15-18days |
| Supply Ability | |||
| Supply Ability | 400000 Square Meter/Square Meters per Month | ||
| Packaging & Delivery | |||
| Packaging Details | aluminum composite panel Wooden pallet or in bulk or plastic film or as customers' requests | ||
| Product Details | |||

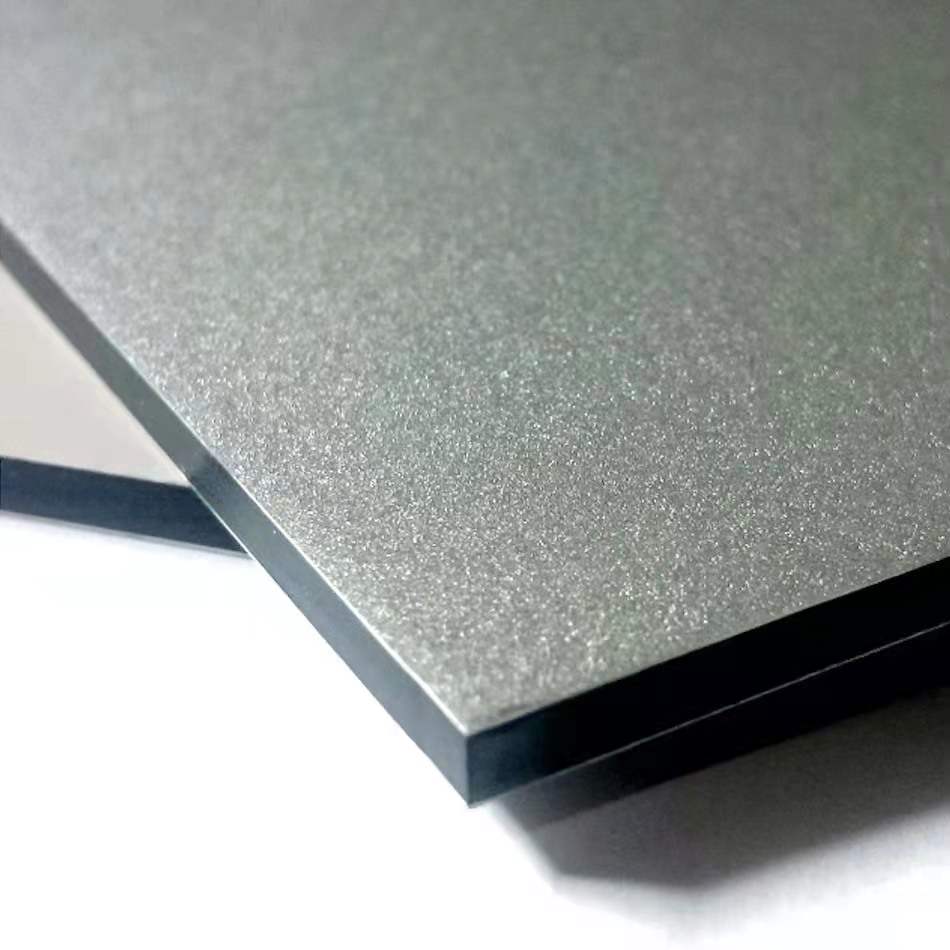

| Specifications Of Aluminum Composite Panel | |||
| Normal Width | 1220mm/1250mm/1300mm/1550mm/2000mm | ||
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm 7mm 8mm | ||
| Aluminum Alloy | AA1100,AA3003,AA5005(Other Grade On Requirement) | ||
| Aluminum Thickness | 0.06mm/0.08mm/0.10mm/0.12mm/0.15mm/0.18mm//0.21mm/0.25mm/ 0.3mm/0.35mm/0.40mm/0.45mm/0.50mm | ||
| Coating | PE/PVDF/NANO/Brush/Mirror | ||
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core | ||
| Color | Solid/Metallic/Marable/Woode/Brush | ||
| Length | 2440mm/3000mm/4000mm/5000mm/5800mm in maximum(20'GP) | ||
| Delivery | 15 to 18 days after receiving deposit and color confirmed | ||
| MOQ | 300 per color | ||
| Brand /OEM | Customized | ||
| Packing | FCL:In bulk/LCL:In Wooden Package | ||
| Basic Material | |||
| 1 | front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE),roasting painting | ||
| 2 | Core material: nontoxic polyethylene, PE, FR, LDPE | ||
| 3 | Back side: aluminum alloy sheet coated with polyester resin painting(PE) | ||
| Characters | |||
| 1)Torsion Strength | High resistance to pressure and force exertion;High flexibility;No damages to paint layer when curved;Resistant to corrosion even by sand storm; | ||
| 2)Easy Processing & Installation | Easy to process due to its light weight;Superior constructibility make it easy to cut,plan edge,bend and form with simple tools | ||
| 3)Thermal Resistance | Megabond ACP’s have insulating properties that prevent heat to penetrate structures,which translates into energy savings | ||
| 4)Fire Resistance | PE plastic core plate is adopted as the flame retarding substance in between difficult-combustible aluminum layers;Fireproof ability is higher than B1 grade standard; | ||
| 5)Weather Resistance | PVDF coating(KYNAR-500)material provides good weatherability.The surface will not be damaged under any climate;Color will last longer; | ||
| 6)Even Coat &Various Colors | Megabond ACP’s use advanced film technology,making the joining of paint and panel strong and uniform;Diversity of colors can satisfy your different requirements; | ||
| 7)High Impact Resistance | Innovative composite production of viscoelastic core fused with durable aluminum membranes provides high impact and breakage resistance;Megabond ACP is strong and rigid; | ||
| 8)Peel Strength | Advanced technology is applied in Megaband ACP’s which enhances the key factor,peel strength,to an excellent condition;Planeness of panel has benn largely improved; | ||
| 9)Sound Resistance | The unique non-combustible poltethylene core of Megabond ACP’s provides sound reducing properties better than other materials such as wood and steel; | ||
| 10)Easy to Maintain | ALUKITBOND ACP’s enjoy the advantage of self-cleaning;Neutral detergent and water are enough to keep it clean | ||
| Application | |||
| Exterior | Wall cladding/facades/roods and canopies/tunnels/column covers/renovations | ||
| Interior | wall cladding/ceilings/bathrooms/kitchens/balconies | ||
| Advertisement and market | Display platforms/signboards/fascias/shop fronts | ||
| Why us? | |||
| Professionalism | Professional in manufacturing, marketing and service for 16 years. | ||
| 2 Production Line | Produce 20,000 sqm per day, finish your order on time. | ||
| 24-Hours Working | Contact line is 24-hours available for your any question. | ||
| Flexible MOQ | Little quantity is available if we have your specification in stock. | ||
| Strict Quality Controlling | ISO9001:2008, SGS | ||
| Shipping Company | Introduce you our good partner--experienced shipping company with competitive price. | ||
| OEM Service | Accept your own design. | ||
| Overview | |||
| Quick Details | |||
| Function | Anti-Static, Antibacterial,moistureproof | Usage | Outdoor or Indoor |
| Application | Decorative Material | Surface Treatment | Brushed.Mirror |
| Warranty | ≥8 years | kitchen cabinet | building facade |
| Panel Thickness | 2，3，4，5，6，7,8mm | Output | 20,000sqm/day |
| Coating | PE,PVDF | Aluminum Thickness | 0.06-0.5mm |
| Transportation | 20GP container | Fireproof Grade | B1 or notfireproof |
| Color | Silver,Red,White,Customer's Requirements | Delivery Time | 15-18days |
| Supply Ability | |||
| Supply Ability | 400000 Square Meter/Square Meters per Month | ||
| Packaging & Delivery | |||
| Packaging Details | aluminum composite panel Wooden pallet or in bulk or plastic film or as customers' requests | ||
| Product Details | |||
| Specifications Of Aluminum Composite Panel | |||
| Normal Width | 1220mm/1250mm/1300mm/1550mm/2000mm | ||
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm 7mm 8mm | ||
| Aluminum Alloy | AA1100,AA3003,AA5005(Other Grade On Requirement) | ||
| Aluminum Thickness | 0.06mm/0.08mm/0.10mm/0.12mm/0.15mm/0.18mm//0.21mm/0.25mm/ 0.3mm/0.35mm/0.40mm/0.45mm/0.50mm | ||
| Coating | PE/PVDF/NANO/Brush/Mirror | ||
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core | ||
| Color | Solid/Metallic/Marable/Woode/Brush | ||
| Length | 2440mm/3000mm/4000mm/5000mm/5800mm in maximum(20'GP) | ||
| Delivery | 15 to 18 days after receiving deposit and color confirmed | ||
| MOQ | 300 per color | ||
| Brand /OEM | Customized | ||
| Packing | FCL:In bulk/LCL:In Wooden Package | ||
| Basic Material | |||
| 1 | front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE),roasting painting | ||
| 2 | Core material: nontoxic polyethylene, PE, FR, LDPE | ||
| 3 | Back side: aluminum alloy sheet coated with polyester resin painting(PE) | ||
| Characters | |||
| 1)Torsion Strength | High resistance to pressure and force exertion;High flexibility;No damages to paint layer when curved;Resistant to corrosion even by sand storm; | ||
| 2)Easy Processing & Installation | Easy to process due to its light weight;Superior constructibility make it easy to cut,plan edge,bend and form with simple tools | ||
| 3)Thermal Resistance | Megabond ACP’s have insulating properties that prevent heat to penetrate structures,which translates into energy savings | ||
| 4)Fire Resistance | PE plastic core plate is adopted as the flame retarding substance in between difficult-combustible aluminum layers;Fireproof ability is higher than B1 grade standard; | ||
| 5)Weather Resistance | PVDF coating(KYNAR-500)material provides good weatherability.The surface will not be damaged under any climate;Color will last longer; | ||
| 6)Even Coat &Various Colors | Megabond ACP’s use advanced film technology,making the joining of paint and panel strong and uniform;Diversity of colors can satisfy your different requirements; | ||
| 7)High Impact Resistance | Innovative composite production of viscoelastic core fused with durable aluminum membranes provides high impact and breakage resistance;Megabond ACP is strong and rigid; | ||
| 8)Peel Strength | Advanced technology is applied in Megaband ACP’s which enhances the key factor,peel strength,to an excellent condition;Planeness of panel has benn largely improved; | ||
| 9)Sound Resistance | The unique non-combustible poltethylene core of Megabond ACP’s provides sound reducing properties better than other materials such as wood and steel; | ||
| 10)Easy to Maintain | ALUKITBOND ACP’s enjoy the advantage of self-cleaning;Neutral detergent and water are enough to keep it clean | ||
| Application | |||
| Exterior | Wall cladding/facades/roods and canopies/tunnels/column covers/renovations | ||
| Interior | wall cladding/ceilings/bathrooms/kitchens/balconies | ||
| Advertisement and market | Display platforms/signboards/fascias/shop fronts | ||
| Why us? | |||
| Professionalism | Professional in manufacturing, marketing and service for 16 years. | ||
| 2 Production Line | Produce 20,000 sqm per day, finish your order on time. | ||
| 24-Hours Working | Contact line is 24-hours available for your any question. | ||
| Flexible MOQ | Little quantity is available if we have your specification in stock. | ||
| Strict Quality Controlling | ISO9001:2008, SGS | ||
| Shipping Company | Introduce you our good partner--experienced shipping company with competitive price. | ||
| OEM Service | Accept your own design. | ||
